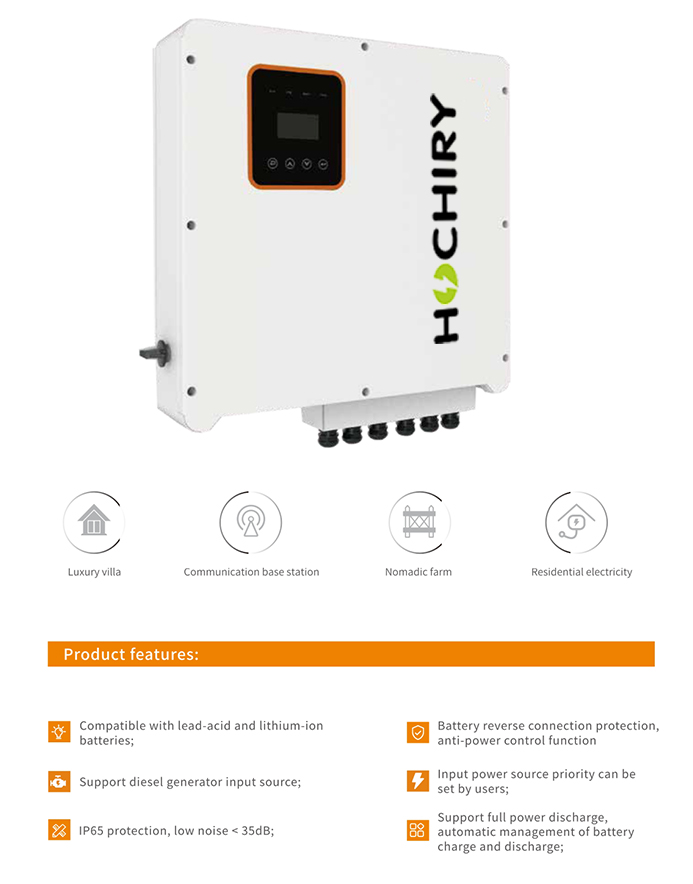

Three Phase ESS Hybrid Inverter

Description

Technical specification	R6KH1NA	R8KH1NA	R10KH1NA	R12KH1NA
Input (PV)
Max. power(kW)	7.8	10.4	13	15.6
Max. DC voltage(V)			500
MPPT voltage range(V)			125 – 500
Max.Input current of single MPPT(A)			12
MPPT tracker/strings			4/1
AC output
Rated output power(kVA)	6	8	10	12
Max. output current(A)	27.3	36.4	45.4	50
Grid voltage/range(V)			240/211~264
Frequency (Hz)			50/60
PF		0.8lagging-0.8leading
THDi			< 3%
AC output topology			L+N+PE
Battery
Battery voltage range(V)			85~400
Max. charging voltage(V)			400
Full battery voltage(V)	85	110	140	160
Max. charge/discharge current(A)			80/80
Battery type			lithium /Lead-acid
Communication Interface			CAN,RS485
EPS output
Rated power(kVA)	6	8	10	12
Rated output voltage(V)			220-240 /110-120
Rated frequency(Hz)			50/60
Automatic switching time(ms)			<20
THDu			< 2%
Overload capacity		110%,30S/120%,10S/150%,0.02S
General data
Max. eﬃciency			≥98.2%
CEC eﬃciency			≥97.2%
Ingress protection			IP65/NEMA 3R
Noise emission(dB)	<25	<25	<29	<29
Operation temperature			-25℃～60℃
Cooling			Natural
Relative humidity		0 ~95%（non-condensing）
Altitude		2,000m(>2,000 Derating)
Weight(kg)			32
Dimensions W * D * H (mm)			530* 200* 660
Display and communication
Display			LCD
Interface:RS485/Wifi/4G/		Yes/ Opt/ Opt/ Yes/ Yes
CAN/DRM		Yes/ Opt/ Opt/ Yes/ Yes
Standby power consumption		< 2.5 (With the battery < 5 )
at night(W)		< 2.5 (With the battery < 5 )
Isolation transformer			Yes
Safety standard		UL1741SA all options, UL1699B, CSA 22.2
EMC			FCC Part 15, Class B
On-grid		IEEE 1547, IEEE 2030.5, Hawaii Rule 14H, Rule 21 Phase I,II,III
