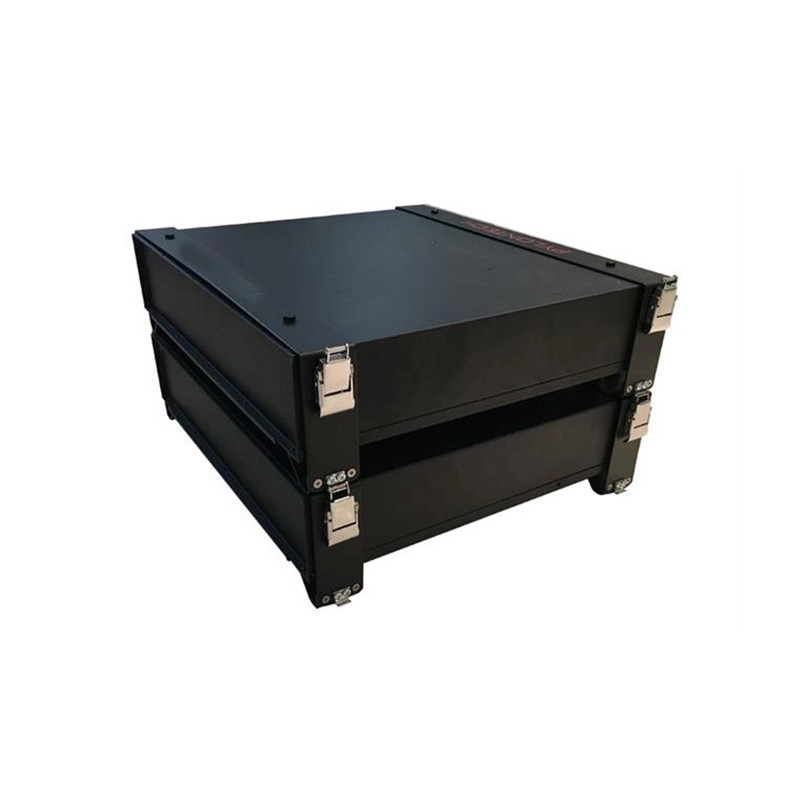

RS232 Rechargeable Lifepo4 Battery Module 5U 48V 200Ah

Place of Origin:	CHINA
Brand Name:	Hochiry
Certification:	TUV

Minimum Order Quantity:	10PCS
Packaging Details:	Product size: 231220cm Manner of packing: Color Box Single weight:3kg QTY / Carton:4 unit / Carton Carton N.W.:15.4kg Carton G.W.:16.2kg Carton Size:49.5cm46cm21cm
Delivery Time:	10-15 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	10000 Piece per week

Description

Product Name:	Rechargeable 48v 100ah Battery	Battery Type:	LiFePO4
Cycle Life:	3000cycle/6000cycle	Protection:	Built-in Smart BMS
Capacity:	50Ah/80ah/100Ah/200Ah	Application:	Solar, Wind, UPS Energy Storage
Communication Port:	RS232, RS485, CAN
High Light:	LiFePO4 Batteries 5U 48V, LiFePO4 Battery Pack Module, Rechargeable Lifepo4 Battery Module

Product Description

Long Life Cycle LiFePO4 Batteries 5U 48V 200Ah Lithium Battery Pack Module

BASICPARAMETERS	HCR4850-2U	HCR48100-5U	HCR48200-5U
Nominal Voltage(V)	48	48	48
Nominal Capacity(Wh)	2400	4800	9600
Dimension (mm)	44248088	442480220	442650220
Weight (Kg)	23	48	87
Discharge Voltage (V)	45~54	45~54	45~54
Charge Voltage (V)	52.5~54	52.5~54	52.5~54
Max Discharge Current (A)	50	100	125
Max Charge Current (A)	50	100	125
Communication	RS232,RS485,CAN	RS232,RS485,CAN	RS232,RS485,CAN
Charging Temperature	0℃~50℃	0℃~50℃	0℃~50℃
Discharging Temperature	-10℃~50℃	-10℃~50℃	-10℃~50℃
Shelf Temperature	-20℃~60℃	-20℃~60℃	-20℃~60℃
Certification	IEC / CE / UN38.3	IEC / CE / UN38.3	IEC / CE / UN38.3
Design life	10+Years(25℃/77℉)	10+Years(25℃/77℉)	10+Years(25℃/77℉)
Cycle Life	>4500 ( 90% DoD)	>4500 ( 90% DoD)	>4500 ( 90% DoD)

PRODUCTS DISPLAY

Product Performance

Vertical industry integration ensures more than 6000 cycles with 90% DoD.
Compact and fashionable design fits in your sweet home environment.
Deliver up to 5KW with single module (2.4KWh).
Modular design gives the end customers the power of choice of capacity.
Compatible with most of the available Hybrid inverters.
Simple buckle fixing minimize the installation time and cost.
Safety Cert.TüV CE UN38.3 IEC.

PRODUCT ADVANTAGE

You can optionally add mounting brackets HCR 4850-2U to this product for a stable base, and to allow easy-stacking of multiple up to 10pcs at max.

APPLICATION

Energy Storage

–Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
–Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
–Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
–RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
–LED Backup / Engine Starting Battery,etc.

PACKING

Good Quality Packs

Low Quality Packs

SUPER SAFETY TEST

Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.

WHY CHOOSE US

◆ Experience–More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
◆ Certification–CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
◆ Quality Control– 37 production process,7 steps quality check to promise stable quality and high reliability for you.
◆ Best Material– Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery– All battery is fresh Production.
