Description
| PRODUCT NAME: | Growatt 5000ES SPF 5000 ES Inverter Off Grid 3500w 5000w | BATTERY TYPE: | LiFePO4 |
|---|---|---|---|
| CYCLE LIFE: | 3000cycle/6000cycle | PROTECTION: | Built-in Smart BMS |
| CAPACITY: | 50Ah/80ah/100Ah/200Ah | APPLICATION: | Solar, Wind, UPS Energy Storage |
| COMMUNICATION PORT: | RS232, RS485, CAN |
|

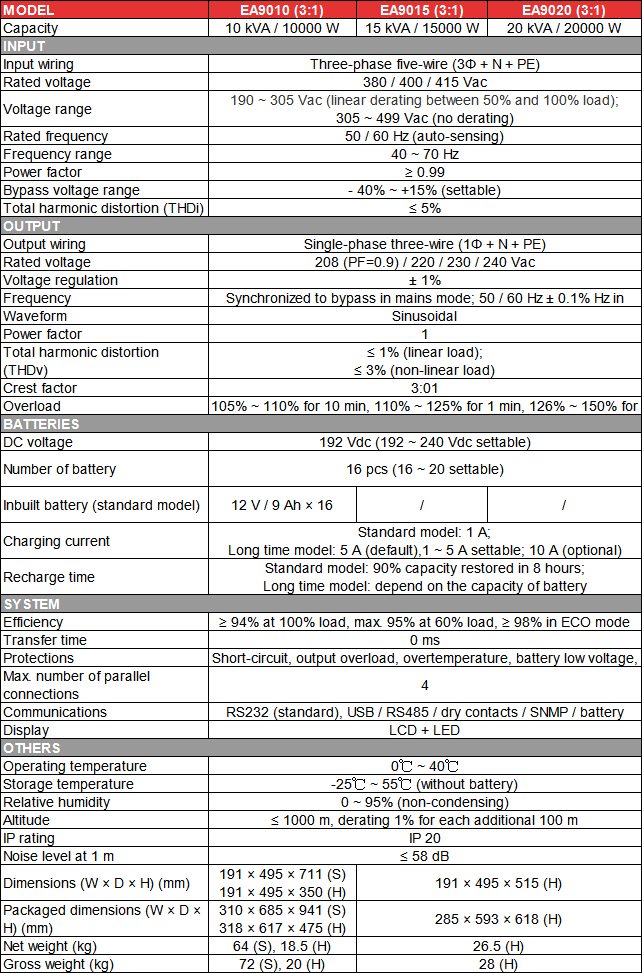

Product name
|
EA900 G4 6 ~ 20 kVA (3:1)
|
|
Brand Name
|
EAST
|
|
Model Number
|
EA900G4 6 kVA ~ 20 kVA (3:1)
|
|
Phase
|
Three Phase
|
|
Protection
|
Short Circuit
|
|
Type
|
On-line
|
|
Waveform
|
Sinusoidal
|
|
Overload capability
|
102% ~ 110% for 10 min, 110% ~ 125% for 1 min, 125% ~ 150% for 30 s
|
|
Number of battery
|
16 pcs (16 ~ 20 settable)
|
|
Efficiency
|
≥ 94% at 100% load, max. 95% at 60% load; ≥ 98% in ECO mode
|
|
Display
|
LCD + LED
|
|
Operating temperature
|
0℃ ~ 40℃
|
|
Storage temperature
|
-25℃ ~ 55℃ (without battery)
|
|
Humidity
|
0 ~ 95% (non-condensing)
|
|
Altitude
|
≤ 1000 m, derating 1% for each additional 100 m
|
● Advanced DSP and 3-level technology
● Output power factor 1.0
● Active power factor correction (APFC), input power factor up to 0.99
● High efficiency 95% (up to 98% in ECO mode)
● Advanced digital parallel technology
● 3:1 to 1:1 model settable
● Wide input voltage range (190 ~ 499 Vac) and frequency range (40 ~ 70 Hz)
● 50 / 60 Hz frequency auto sensing
● Two modes of frequency conversion: 50 Hz input / 60 Hz output or 60 Hz input / 50 Hz output
● Dual-input design, supporting independent bypass● Flexible battery configuration (settable 16 – 20 pcs batteries)
● Digitally controlled charger
● High charging current available (Max. 10 A)
● Charging voltage and current configured by demands
● Linear derating in low voltage input reducing battery discharging times, extending the service life of battery
● Intelligent battery management, automatic floating / equalizing charge control, charger dormancy control, increasing battery life by 50%● Ability to switch on the UPS with batteries
● Fan speed varies intelligently with temperature, reducing noise and extending its service life
● Equipped with self-aging function
● Compact internal layout, miniaturized the complete unit for small footprint
● Output power factor 1.0
● Active power factor correction (APFC), input power factor up to 0.99
● High efficiency 95% (up to 98% in ECO mode)
● Advanced digital parallel technology
● 3:1 to 1:1 model settable
● Wide input voltage range (190 ~ 499 Vac) and frequency range (40 ~ 70 Hz)
● 50 / 60 Hz frequency auto sensing
● Two modes of frequency conversion: 50 Hz input / 60 Hz output or 60 Hz input / 50 Hz output
● Dual-input design, supporting independent bypass● Flexible battery configuration (settable 16 – 20 pcs batteries)
● Digitally controlled charger
● High charging current available (Max. 10 A)
● Charging voltage and current configured by demands
● Linear derating in low voltage input reducing battery discharging times, extending the service life of battery
● Intelligent battery management, automatic floating / equalizing charge control, charger dormancy control, increasing battery life by 50%● Ability to switch on the UPS with batteries
● Fan speed varies intelligently with temperature, reducing noise and extending its service life
● Equipped with self-aging function
● Compact internal layout, miniaturized the complete unit for small footprint
● LCD+LED display, multi-functional keys operation, friendly human-machine interface
● Powerful background software for parameters configuration
● Advanced multi-platform communications: RS232, USB, RS485, SNMP and dry contacts communication interfaces
● Effective software and hardware protection function, robust self-diagnostic function, and abundant event log for check
Available Options
● RS232 and smart card slot included
● Optional parallel function, battery temperature compensation, SNMP card, USB, RS485 card, dry contacts, EMD, and SMS alarms
