Description

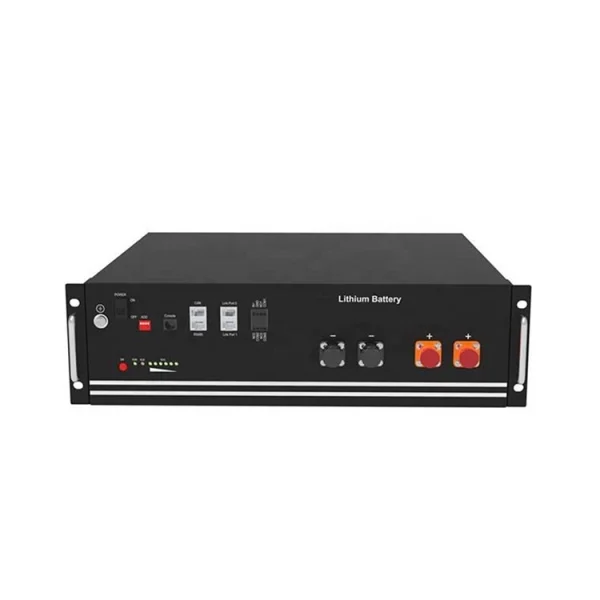

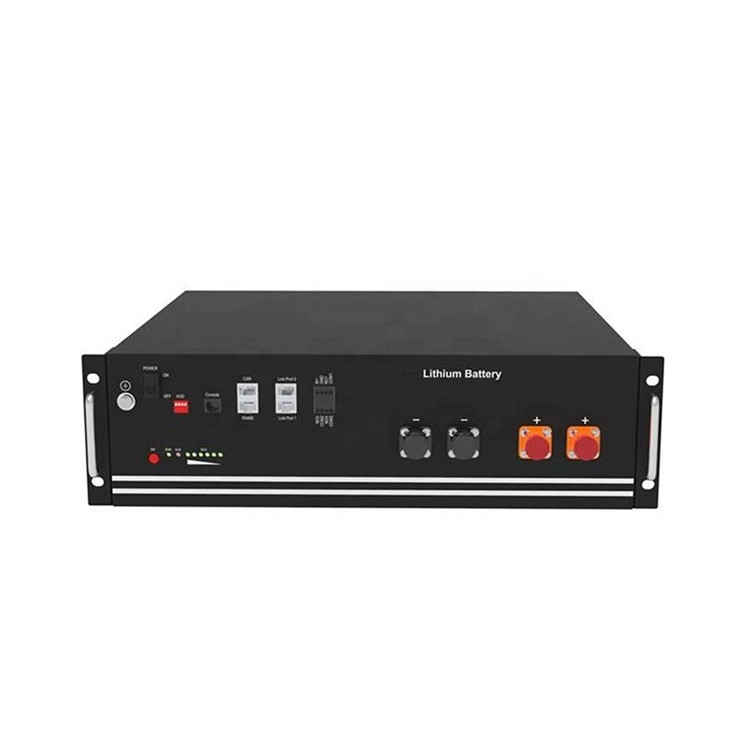

| Product Name: | Rechargeable 48v 100ah Battery | Battery Type: | LiFePO4 |
|---|---|---|---|
| Cycle Life: | 3000cycle/6000cycle | Protection: | Built-in Smart BMS |
| Capacity: | 50Ah/80ah/100Ah/200Ah | Application: | Solar, Wind, UPS Energy Storage |
| Communication Port: | RS232, RS485, CAN | ||
| High Light: | Solar System Lithium Iron Phosphate Battery,
Lithium Iron Phosphate Battery 200ah, Lifepo4 Battery Solar System |
||
Product Description
Product Parameter
| Basic Parameters | US2000 | Phantom-S |
SK48100 |
| Nominal Voltage (V) | 48 | 48 |
51.2 |
| Nominal Capacity (Wh) | 2400 | 2400 |
5120 |
| Usable Capacity (Wh) | 2200 | 2200 |
4096 |
| Dimension (mm) | 442*410*89 | 440*440*88.5 |
482*400*177 |
| Weight (Kg) | 24 | 24 |
45 |
| Discharge Voltage (V) |
45 ~ 53.5 |
45 ~ 53.5 |
37.5-54.7 |
| Charge Voltage (V) | 52.5 ~ 53.5 | 52.5-53.5 |
48-54.7 |
| Charge / Discharge Current (A) | 25(Recommend) | 25(Recommend) |
50 (Recommend) |
| 50 (Max) | 50 (Max) | 100 (Max) | |
| 100 (Peak© 15s) | 100 (Peak© 15s) |
100 (Peak@15s) |
|
| Communication Port | RS485, CAN | RS485. CAN | RS485. CAN |
| Single string quantity(pcs) |
8 |
8 |
8 |
| Working Temperature/”C | -20~60 | -80 |
-80 |
| Shelf Temperature/°C | -80 | -20 〜60 |
-80 |
| Humidity | 5%~85% | 5%~85% | 5%~85% |
| Altitude (m) | <4000 | <4000 |
<4000 |
| Design life | 15+Years (25°C/77°F) | 15+Years (25°C/77T) | 15+Years (25aC/77T) |
| Cycle Life | >6000, 25C | >6000, 25 C | >6000, 25C |
| Authentication Level | IEC62619/CE/UN38.3 | IEC62619/CE /UN38.3 |
IEC62619/CE /UN38.3 |
