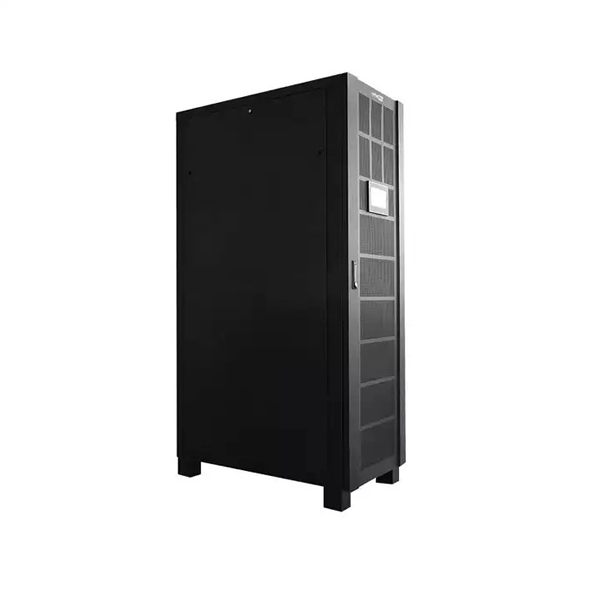

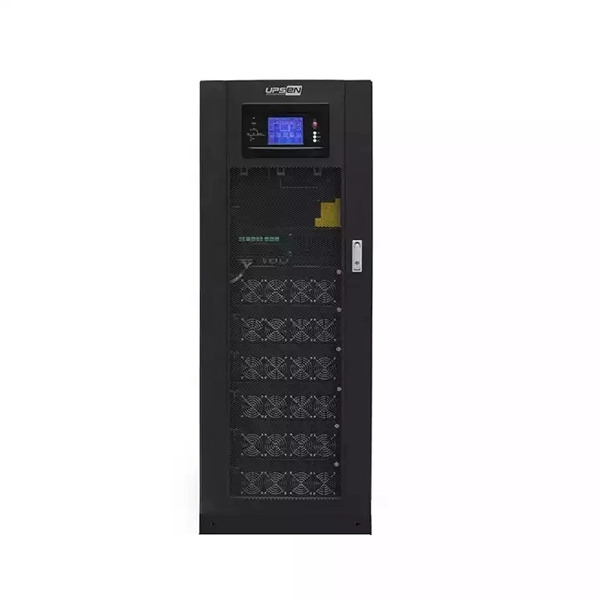

Industrial Online Low Frequency UPS 30KVA With Three Phase
Features
Design and development of high-power UPS, applications for large critical loads, such as
data centers, host systems, transportation systems, manufacturing, and telecommunications
equipment. Pure online double conversion and dual-DSP digital control of IGBT technology is to
ensure stable output voltage and frequency of a sine wave. Provide remote monitoring via SNMP,
RS485,RS232, and provide a high level of reliability.
High power UPS using advanced digital control technology, can provide up to 8 machines
running, and allowing for a harmonic filters, isolation transformers and other options.
★ Three phase input and output
★ Double conversion
★ DSP+CPLD+MCU digital control
★ Digital PRS technology
★ Independent Static Bypass
★ Manual Bypass
★ Battery Management System
★ 6.5 LCD+LED Display support many languages
★ Remote Control
★ Self-test
★ Low Noise
★ Control power redundant design
★ Output isolation
|
Capacity |
Nominal |
30KVA |
|
|
Output |
27KW
|
||
|
Rectifier |
6 Pules |
||
|
Input |
Phase |
3P+N+PE |
|
|
Nominal Voltage |
380/400/415VAC |
||
|
Voltage Range |
285VAC~475VAC |
||
|
Frequency |
50/60Hz |
||
|
Frequency Range |
45-66Hz |
||
|
Input power delay |
5-600S(settable) |
||
|
Rectifier start |
6-100S(settable) |
||
|
Bypass |
Nominal |
380/400/415VAC(3P+N) |
|
|
Voltage Range |
-40%-+20%(settable) |
||
|
Frequency |
50/60Hz±10%(±2.5%,±5%,±10%,±20% settable)
|
||
|
Output |
Output |
380/400/415VAC |
|
|
Voltage Range |
±1%(load balance),±2%(100% loads unbalance) |
||
|
Power Factor |
0.9 |
||
|
Transient |
±5%(0~100% load) |
||
|
THD |
<1%(100% linear load) |
||
|
Response Time |
<5ms |
||
|
Synchronization |
±2Hz(±0.5-±3Hz setable) |
||
|
Overload |
110% normal running,125% 10 minutes,150% 1 munites |
||
|
Frequncy |
±0.05% |
||
|
Wave Form |
Pure Sine Wave |
||
|
Efficiency |
Inverter |
92% |
|
|
ECO |
98% |
||
|
N+X P |
Quantity |
12V,30 pieces(30-32 optional) |
|
|
Display |
Type |
LCD +LED |
|
|
Dimension |
D(mm) |
720 |
|
|
H(mm) |
1100 |
||
|
W(mm) |
560 |
||
|
Weight |
NG(Kg) |
300 |
|
|
Ambient |
Temperature |
0-40℃ |
|
|
Humidity |
0-95% Non-condensing |
||
|
Noise(1m) |
65dB |
||
|
Communication
|
RS-232/RS-485 |
windows XP/7/8/10 Linux/Mac |
|
|
SNMP(optional) |
Remote control |
||
|
Standard
|
LVD |
IEC60950-1,IEC62040-1-1 |
|
|
EMC |
IEC62040-2,IEC62040-3 |
||
