Description
| Product Name: | 48V 400Ah 20Kwh Solar Battery Bank | Battery Type: | LiFePO4 |
|---|---|---|---|
| Cycle Life: | 3000cycle/6000cycle | Protection: | Built-in Smart BMS |
| Capacity: | 50Ah/80ah/100Ah/200Ah | Application: | Solar, Wind, UPS Energy Storage |
| Communication Port: | RS232, RS485, CAN | ||
| High Light: | Container Battery System 1 Mwh,
Solar Storage Container Battery System 200kwh, ESS Lithium Battery Cabinet |
||
Product Description

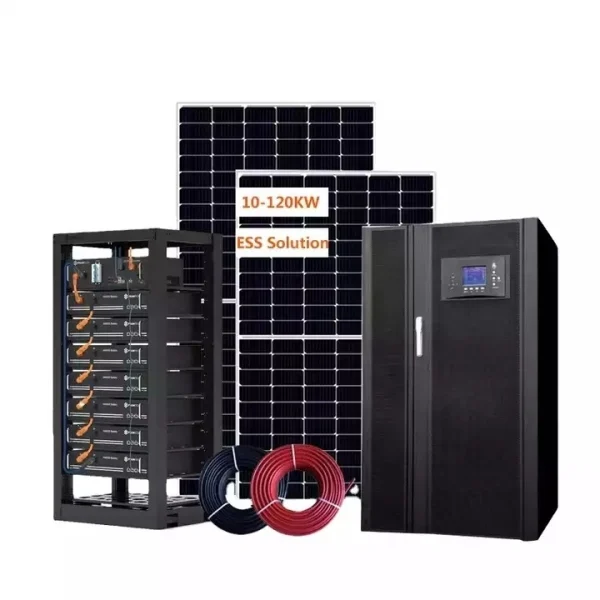

ESS Container LiFePO4 Energy Storage System 500kw 1mw 3mw Solar System Container House
Product Description
System Block Diagram
Components Included
Half Cut Solar Panel
Highest conversion efficiency of 21.5%
0~+5W positive power tolerance
PID Protection
Higher performance under low light.
MBB cell technology.
Maximum system voltage:1500V *Junction box:IP68
Frame:Aluminum alloy
Cell amount:72*2pcs
Application level:Class A
12Years product warranty,25 Years power output guarantee.
0~+5W positive power tolerance
PID Protection
Higher performance under low light.
MBB cell technology.
Maximum system voltage:1500V *Junction box:IP68
Frame:Aluminum alloy
Cell amount:72*2pcs
Application level:Class A
12Years product warranty,25 Years power output guarantee.
.
PV Combiner Box
*Lightning protection
*Optional string monitoring function
*IP65 environment compatibility
*Flexible design, 8,16 inputs optional
*RS485 communication interface
*Input fuse for over current protection *PV combiner box is an accessory for multiple PV string connection, it is with smart controller inbuilt for monitoring, along with comprehensive protections including fuse and SPD
*Optional string monitoring function
*IP65 environment compatibility
*Flexible design, 8,16 inputs optional
*RS485 communication interface
*Input fuse for over current protection *PV combiner box is an accessory for multiple PV string connection, it is with smart controller inbuilt for monitoring, along with comprehensive protections including fuse and SPD
PBD/PCS/Bypass
*PBD250:Solar Charge Controller
*PCS50/100/250/500/630:
Bi-directional battery inverter
*Bypass50/100/250/500:
bypass cabinet is designed to be used together with bidirectional battery inverter and PV inverter to realize seamless transfer between on and off grid mode automatically.
ShineMaster Monitoring
*Up to 32 inverters connection
*Multi-function and high performance *Local webserver for easy configuration *Support external sensor to realize zero-export function.
*Datalogger for overall system monitoring, collect operation data from different units via Modbus RS485 and communicate with the server via internet
*Multi-function and high performance *Local webserver for easy configuration *Support external sensor to realize zero-export function.
*Datalogger for overall system monitoring, collect operation data from different units via Modbus RS485 and communicate with the server via internet
Lithium-ion Battery
*Easy installation and maintenance
*LFP high-capacity Li-Ion battery with aluminum shell,over 130wh/kg
*Self-developed 3-level BMS, complex protection, safe and reliable
*Long cycle life, 6000 cycles *Outdoor battery cabinet with IP54 protection level, indoor battery rack with IP20 protection level,inbuild lithium-ion battery and BMS.
*Standard 5Years Warranty.
Solar Accessories
*Black/Red color 4/6/10 mm2 PV cable
*Universal compatible PV connectors
*With CE TUV certificate
*15Years Warranty
*Universal compatible PV connectors
*With CE TUV certificate
*15Years Warranty
PV Mounting System
*Customized for roof&ground etc. *Adjustable angle from 0~65 degree
*Compatible with all type solar panel
*Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
*Mid & End Clamps: 35,40,45,50mm
*L Foot Asphalt Shingle Moount & Hanger Bolt Optional
*Cable Clip & Tie Optional
*Ground Clip & Lugs Optional
*25Years Warranty
*Compatible with all type solar panel
*Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
*Mid & End Clamps: 35,40,45,50mm
*L Foot Asphalt Shingle Moount & Hanger Bolt Optional
*Cable Clip & Tie Optional
*Ground Clip & Lugs Optional
*25Years Warranty
|
Micro-grid 250-5000KW/KWH Complete ESS Container Configuration
|
|||
|
System Model
|
LS250KW/KWH-ESS
|
LS500KW/KWH-ESS
|
LS1MW/MWH-ESS
|
|
Half Cut 550W Solar Panel
|
480pieces
|
960pieces
|
1920pieces
|
|
PV Combiner Box
|
5pieces
8 input 1output
|
10pieces
8 input 1output
|
20pieces
8 input 1output
|
|
Solar Charge Controller
|
1Piece PBD250
|
2Piece PBD250
|
4Pieces PBD250
|
|
Bi-directional Battery Inverter
|
1piece PCS 250
|
1piece PCS 500
|
2pieces PCS 500
|
|
Bypass cabinet
|
1piece Bypass 250
|
1piece Bypass 500
|
1piece Bypass 1000
|
|
LFP Battery Bank
|
250KWH
|
500KWH
|
1MWH
|
|
PV Cables
|
4000m
|
8000m
|
12000m
|
|
MC4 Connector
|
240pairs
|
480pairs
|
960pairs
|
|
Mounting System
|
Customized based on your installation site
|
||
|
Container Size
|
10/20/40ft
|
||
|
System Model
|
LS2MW/MWH-ESS
|
LS3MW/MWH-ESS
|
LS5MW/MWH-ESS
|
|
Half Cut 550W Solar Panel
|
3840pieces
|
5760pieces
|
9600pieces
|
|
PV Combiner Box
|
40pieces
8 input 1output
|
60pieces
8 input 1output
|
100pieces
8 input 1output
|
|
Solar Charge Controller
|
8Piece PBD250
|
12Piece PBD250
|
20Piece PBD250
|
|
Bi-directional Battery Inverter
|
4pieces PCS 500
|
6pieces PCS 500
|
10pieces PCS 500
|
|
Bypass cabinet
|
2pieces Bypass 1000
|
3pieces Bypass 1000
|
5pieces Bypass 1000
|
|
LFP Battery Bank
|
2MWH
|
3MWH
|
5MWH
|
|
PV Cables
|
24000m
|
36000m
|
60000m
|
|
MC4 Connector
|
1920pairs
|
2880pairs
|
4800pairs
|
|
Mounting System
|
Customized based on your installation site
|
||
|
Container Size
|
10/20/40ft
|
||
