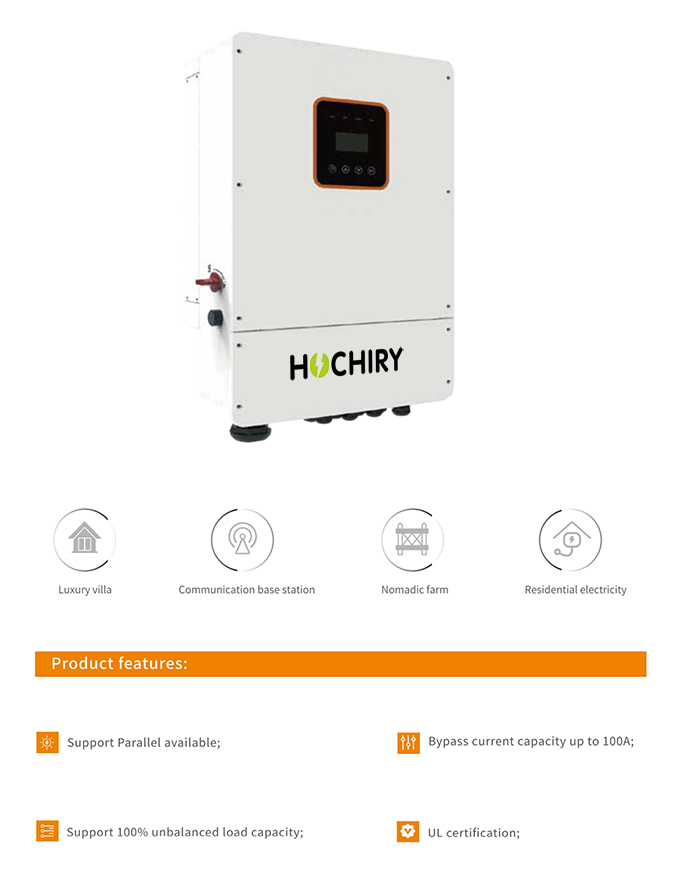

American ESS Split-Phase Inverter（Battery Voltage: 48V）

Description

Technical specification	R5KLNA	R6KLNA	R8KLNA	R10KLNA
Input (PV)
Max. power(kW)	7.5	9	12	13
Max. DC voltage (V)			500
MPPT voltage range(V)			120~500
Max.Input current of single MPPT(A)			12
MPPT tracker/strings			4/1
AC output
Rated output power(kVA)	5	6	8	10
Max. output current(A)	24	28.8	38.3	47.8
Ac output voltage(V)		120/240(split phase), 208(2/3 phase),230 (single phase)
Frequency (Hz)			50/60
PF			0.8lagging-0.8leading
THDi			< 3%
AC output topology		Split phase, 2/3 phase, single phase
Battery
Battery voltage range(V)			40~58
Max. charging voltage(V)			58
Max. charge/discharge current(A)	120/120	135/135	190/190	210/210
Battery type			lithium /Lead-acid
Communication interface			CAN/RS485
EPS output
Rated power(kVA)	5	6	8	10
Rated output voltage(V)		120/240 (split phase), 208 (2/3 phase),230 (single phase)
Rated output current(A)	24	28.8	38.3	47.8
Rated frequency(Hz)			50/60
Automatic switching time(ms)			＜20
THDu			< 2%
Overload capacity			125%,60S/150%,1S
General data
Max. eﬃciency			≥98.2%
North american eﬃciency			≥97.2%
Ingress protection			IP65/NEMA 3R
Noise emission(dB)	<25	<29	<29	<29
Operation temperature			-25℃ ~ 60℃
Cooling			Natural
Relative humidity		0 ~95%（non-condensing）
Altitude			2,000m(>2,000 Derating)
Dimensions W D H (mm)			430220710
Weight(kg)			41
Isolation transformer			No
Self-consumption(W)			<3
Display and communication
Display			LCD, touch screen
Interface:RS485/Wifi/4G/			Yes
CAN/DRM			Yes
Safety standard		UL1741SA all options, UL1699B, CSA 22.2
EMC			FCC Part 15, Class B
On-grid		IEEE 1547, IEEE 2030.5, Hawaii Rule 14H, Rule 21 Phase I,II,III,NRS
