Description
| Product Name: | ON Grid Off Grid Hybrid Solar Panel Inverter | Output Frequency: | 50HZ 60HZ, 50HZ/60HZ |
|---|---|---|---|
| Input Voltage: | 12V24V36V, 24/48VDC/230VAC | Output Current: | 15A-80A, 80A |
| Output Voltage: | 220 230VAC, 230VAC | Output Power: | 800-5000W |
| Output Waveform: | Pure Sine Wave Output | Application1: | ON Grid Solar System |
| Application2: | OFF Grid Solar System | Application3: | Hybrid Solar System |
| Efficiency: | 90-93% | Protection: | Overload / Over Voltage/output Short Circuit |
| High Light: | MPPT On Off Grid Hybrid Solar Inverter, 3kva 24v solar inverter, 48v Solar Inverter |
||

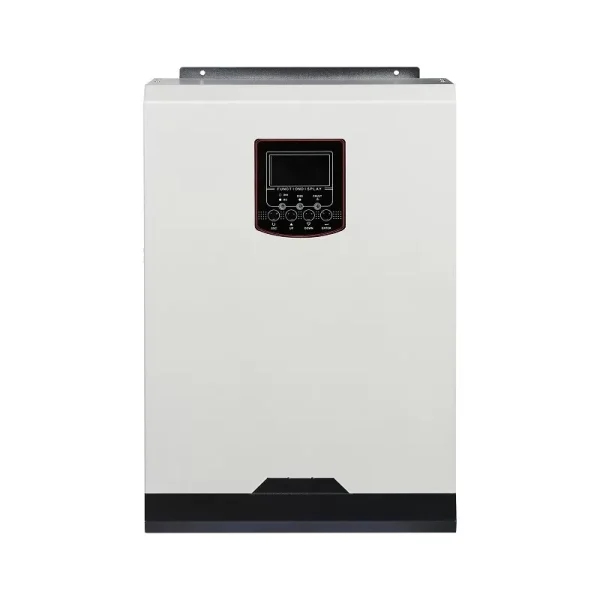

Hybrid On Off Grid 3kva 2400w Mppt 24v 48v Solar Inverter
Equipped with PM solar charge controller to maximize and regulate DC power from the solar array for the charging the battery bank. Transformer less design provides reliable power conversion in compact size and with high efficiency.With aluminum housing ,integrated interface system.lt’s light and handy ,making installation easier.lt’s the ideal inverter for small PV plants ,or individually for small houses both indoors and outdoors.
Features:
1.Pure sine wave inverter
2.Built-in MPPT solar charge controller
3.Selectable input voltage range for home use
4.Selectable charging current based on applications
5.Configurable AC/Solar input priority via LCD setting
6.Compatible to mains voltage or generator power
7.Auto restart while AC is recovering
8.Overload and short circuit protection
9.Smart battery charger design for optimized battery performance
10.Cold start function
11.Parallel operation with up to 6 units only available for MPS4K and MPS 5K
12.Connectting 3-6 pcs can also get 3 phase 380vac solar system
Technical data:
|
Model
|
SHMT-3000
|
SHMT-5000
|
|
RATED POWER
|
3000VA/3000W
|
5000VA/5000W
|
|
INPUT
|
||
|
Voltage
|
230 VAC
|
|
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers)
|
|
|
90-280 VAC (For Home Appliances)
|
||
|
Frequency Range
|
50 Hz/60 Hz (Auto sensing)
|
|
|
OUTPUT
|
||
|
AC Voltage Regulation (Batt. Mode)
|
230VAC ± 5%
|
|
|
Surge Power
|
6000VA
|
10000VA
|
|
Efficiency (Peak) PV to INV.
|
97%
|
|
|
Efficiency (Peak) Battery to INV.
|
94%
|
|
|
Transfer Time
|
10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
|
|
|
Waveform
|
Pure sine wave
|
|
|
BATTERY & AC CHARGER
|
||
|
Battery Voltage
|
24 VDC
|
48 VDC
|
|
Floating Charge Voltage
|
27 VDC
|
54 VDC
|
|
Overcharge Protection
|
33 VDC
|
63 VDC
|
|
Maximum Charge Current
|
60 A
|
60 A
|
|
SOLAR CHARGER
|
||
|
Maximum PV Array Power
|
4000 W
|
|
|
MPPT Range @ Operating Voltage
|
120 ~ 450 VDC
|
|
|
Maximum PV Array Open Circuit Voltage
|
500 VDC
|
|
|
Maximum Charging Current
|
80A
|
|
|
Maximum Efficiency
|
98%
|
|
|
PHYSICAL
|
||
|
Dimension, D x W x H (mm)
|
100 x 300 x 440
|
|
|
Net Weight (kgs)
|
9
|
10
|
|
Communication interface
|
USB/RS232
|
|
|
OPERATING ENVIRONMENT
|
||
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
|
Operating Temperature
|
0°C – 55°C
|
|
|
Storage Temperature
|
-15°C – 60°C
|
|
