| Battery Cell |
Description |
| Normal specification |
| Model |

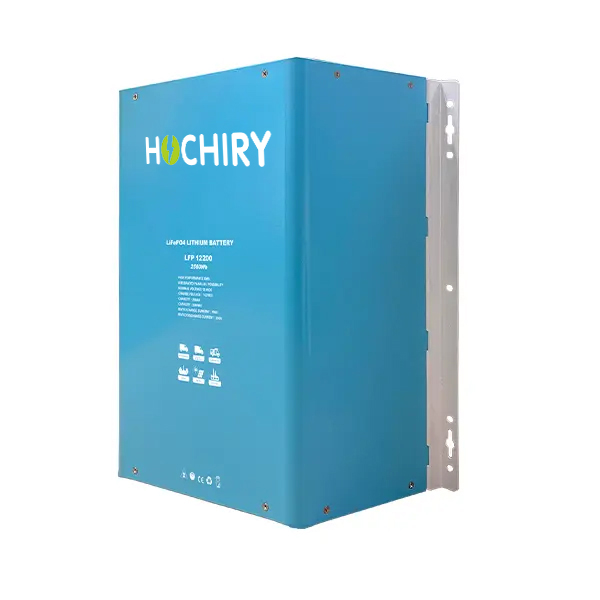

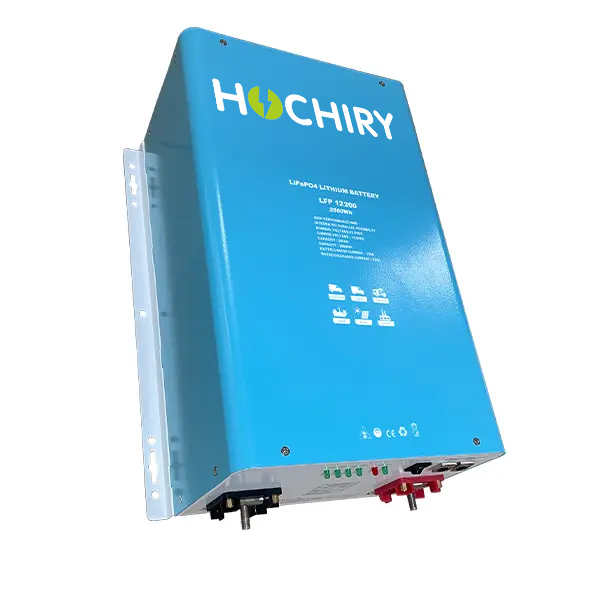

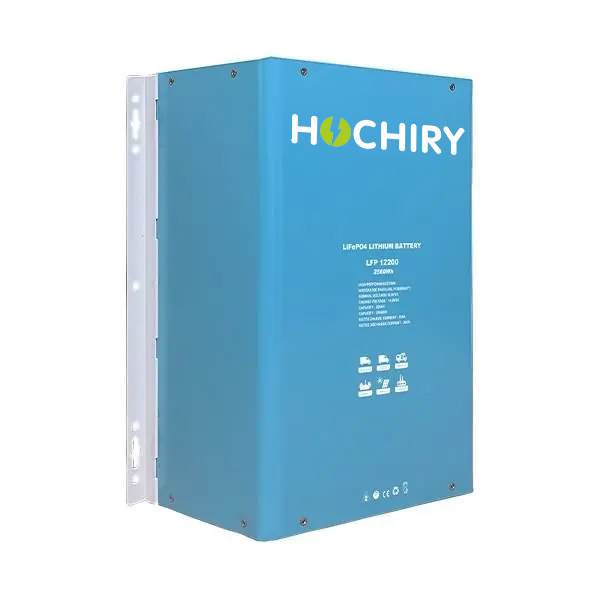

LFP12200M |
LFP24100M |
| Rated Voltage |
12.8V |
25.6V |
| Rated Capacity |
200Ah |
100Ah |
| Rated Energy |
2.56KWH |
2.56KWH |
| Cell Configuration |
4S2P |
8S1P |
| Battery Cell |
3.2V100AH 8PCS |
3.2V100AH 8PCS |
| Standard Charge |
| Operation temperature range ©charging |
0~45°C |
| Rated charge voltage |
13.8±0.1V |
27.6±0.2V |
| Max charge voltage |
14.2±0.1V |
28.4±0.2V |
| Overcharge protection |
14.6±0.1V |
29.2±0.2V |
| Allowed MAX charge current |
110A withstand 30s |
55A withstand 30s |
| Peak charge current |
120A withstand 5s |
60A withstand 5s |
| Rated charge current |
100A |
50A |
| Recommend charge current |
<100A |
<50A |
| Standard discharge |
|
|
| Operation temperature range ©discharging |
-20~60°C |
| Output Voltage Range |
10-14Vdc |
20~28Vdc |
| Recommend Working Range |
11.5~13.5Vdc |
23~27Vdc |
| Discharge Cut-off voltage |
10V |
| Allowed MAX discharge current |
220A withstand 30s |
110A withstand 30s |
| Peak discharge current |
240A withstand 5s |
120A withstand 5s |
| Rated discharge current |
200A |
100A |
| Recommend discharge current |
<200A |
<100A |
| Communication |
| RS485 |
For LCD remote |
| CAN |
PC control and monitor |
| Storage and Transportation requirements |
| Storage Temperature |
Less than 1 month:-20~35°C |
| Less than 6 month:-10-30°C |
| Storage Humidity |
45~75%RH |
| SOC |
Storage:60~75% SOC |
| Transport:45~55% SOC |
| Mechanical Characteristics |
| Dimension H*W*D |
450*260*185mm |
| Shipping H*W*D |
500*360*315mm |
| Weight(N.W.) |
26KG |
| Weight(G.W.) |
29KG |
